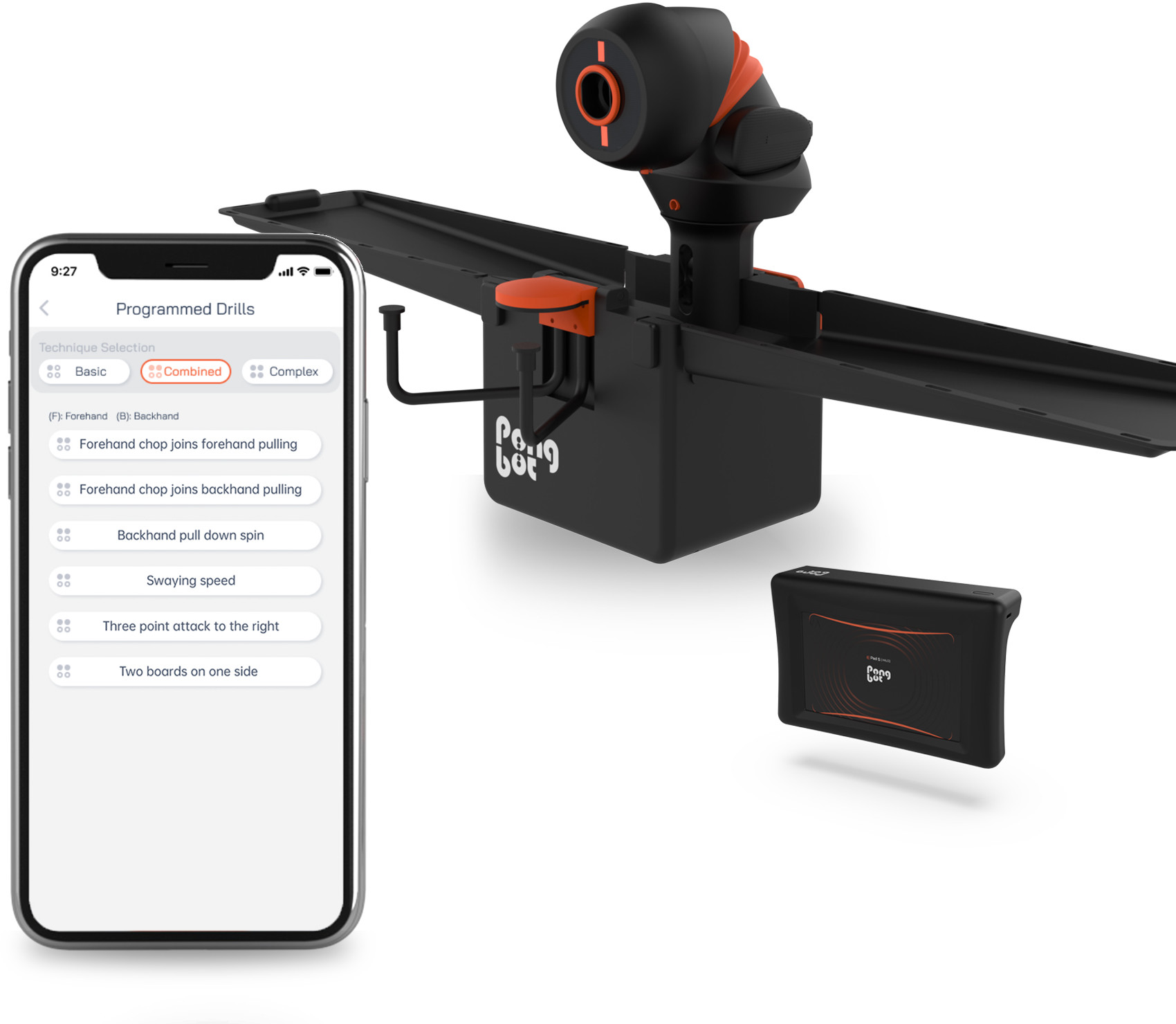

Pongbot Omni S Pro

Clamp Type Table Tennis Serving Robot
Compact clamp-type robot with 396 pre-programmed drills, ideal for all skill levels from beginners to professionals. Personalize your training sessions through the versatile E Pad S interface and Pongbot app.

Simulated Combat with Fast Rhythm Switching
A clamp-type serving robot that can compete with top players. The shooting speed is 2–15m/s. The maximum spin speed up to 100r/s, accompanied by a shooting frequency of 30–90 balls per minute, and multiple finely adjustable gears. Simulate the realistic combat experience, with quick and automatic switching between long and short balls in just 0.66 seconds.

Introduce Recreational Players to A New and Higher Level of Competitive Play
Both the mobile app and the E Pad S offer 396 sets of programmed drills, which can fully meet the user’s needs for basic training, high-difficulty challenges, daily entertainment, and professional training. Providing you with a high-level competitive experience.

Visualize and Precisely Customize the Gameplay You Want
Customizable programming for serving parameters such as spin, frequency, speed, landing point, and trajectory. Visualize and save in both the APP and E-Pad. Provide users with multiple gears for precise parameter tuning.

Convenient and User-friendly Control
APP and E Pad S Bluetooth touch screen, real-time adjustment of shooting parameters, custom routines support for synchronized mobile APP. 396 professional programmed drills to meet the various refined needs of players.

Drill Library with Unlimited Routine Combination Sharing
The open drill library in the app offers a variety of visual routine combinations to share, providing users with the opportunity to freely choose their favorite routines to follow during training. It also supports sharing custom ball routines inside. Pongbot has created a space for users to learn from each other and grow together. Invited former coach of the Chinese national table tennis team, Chen Bin, to participate in the design of the drills and various professional table tennis techniques.

Technical Parameters
Ball serving method: double-wheel drive
Ball loading method: rubber wheel horizontal upward loading
Frequency: 30–90 balls/minute, 11 levels in total
Ball speed: 2–15m/s, 21 levels in total
Double bounce: support, switchable between single and double bounce
Rated voltage: DC24V
System: Android/iOS
Communication method: Bluetooth / WiFi
Installation location: the robot and the recovery net are installed together in the middle of the table baseline

L&R swing function: automatic, continuous
L&R swing range: 44 deg (-22 deg ~ 22 deg)
Up and down adjustment range: 60 deg (-20 deg ~ 40 deg)
Up and down adjustment function: automatic, continuous
Side spin adjustment range: 135 deg (0 deg ~ 135 deg)

Net weight: 9 kg/19.8 lbs
Gross weight: 15 kg/33 lbs
Product packaging size: 510 × 460 × 985 mm
Product Accessories:
Adapter (AC100–240, 50/60Hz)
Ping-pong ball / recovery net

Warranty:
Robot (Main Unit): Covered by a 1-year warranty
Core Parts (side rotational motor, left & right rotational motors, pitching screw motor, ball squeezing motor, ball feeding motor – without gearbox): 3-year warranty
Wearing Parts (ball squeezing wheel): 1-year warranty
Accessories (adaptor, ball recycle net, N-Control, E-PAD with lithium battery, Type-C charge line, net clip): 1-year warranty
