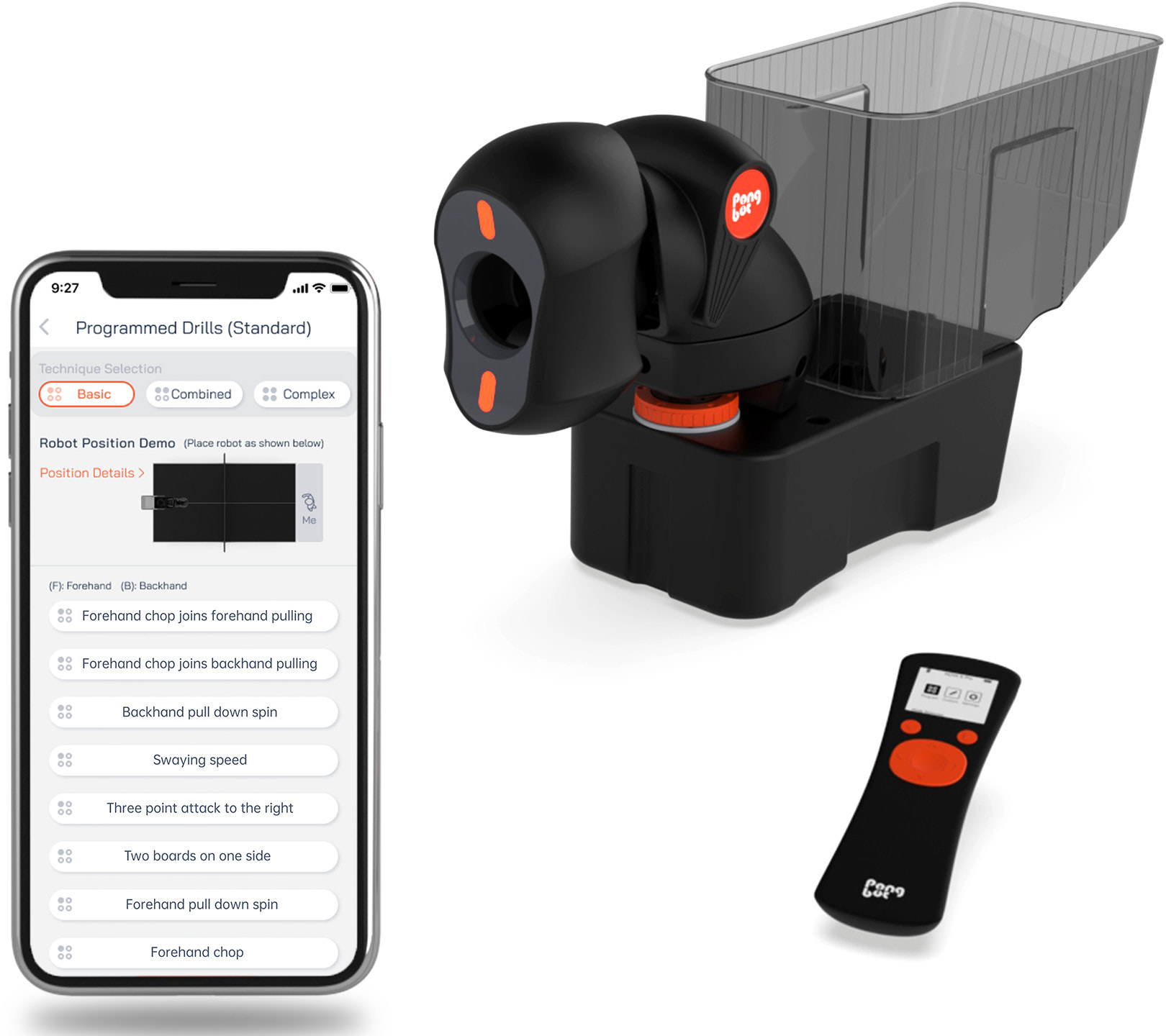

Pongbot Nova S Pro

Portable Table Tennis Serving Robot

Affordable and portable, ideal for beginners, featuring 264 pre-programmed drills. Easily customize drills using the intuitive app and N-Control-S controller to suit your skill level and playing style.

Shots that Can Match the Highest Caliber of Players
The perfect table tennis training partner with its completely customizable settings for spin, frequency, speed, oscillation and trajectory. Its frequency range of 30 to 90 balls per minute at varying speeds (2–15m/s). It can simulate any serve, as the robot can oscillate 44 degrees and create ball trajectories of 20 degrees downwards to 30 degrees upwards.

Rich Programmed Drills Coverage from Entertainment to Professionalism
Rich standard position and near-net position programmed drills, up to 264 sets, covering all needs from entertainment to professional training. Pioneering the programmed drill of near-net position, providing softer serve training to meet the training needs of more players. Meet the left and right-hand routines in all directions.

Visual Program and Precise Customize the Shot You Want Freely
The robot can shoot anywhere on the table tennis table. Its spin, frequency, speed, oscillation, and trajectory settings are completely customizable, and graphics and trajectories are visualized in the mobile app. All custom programming can be saved indefinitely.

Intelligent, Precise, and Easy Control Selection
Connected via Bluetooth. N Control S can control the machine more simply and conveniently. Easy and quick selection of various programmed drills; Real-time oscillation control of the machine. The APP provides more visual and precise control. Supports both IOS and Android usage.

Sleek Design and Build Quality
The compact and portable NOVA can be carried anywhere in a backpack. The machine comes with a ball storage bucket that can hold 150+ balls. Various elaborate designs make the machine more comprehensive and practical. The machine uses German BASF materials, with top-notch durability and craftsmanship.

Triple Anti-Jamming Technique Makes Serving Smoother
POM high lubrication pipeline, anti-jamming ball spring, arc-guided ball feeding wave wheel, and triple technology to prevent ball jamming, providing users with a smoother serving experience.

Fine Design and Embodied Intelligence Technology
The machine comes with a storage bucket that can accommodate 150+ balls. The PONGSMART intelligent algorithm allows for quick switching of serving rhythm, simulation of serving, and freedom of change.

Technical Parameters
Ball serving method: Rubber wheel horizontal upward loading (stores 200 balls)
Ball loading method: Double-wheel drive
Ball speed: 2–15 m/s
Frequency: 30–90 balls/minute (11 levels)
Rotation range: 360° arbitrary rotation
Rotation speed: Maximum 60 r/s (21 levels)
L&R swing function: Automatic, continuous
L&R swing range: 44 deg (±22 deg) mechanical angle ±25 deg
Up & down adjustment range: Not automatically switch
Up & down adjustment function: 50 deg (-20 deg to -30 deg) mechanical angle 17 deg–33 deg
Side spin adjustment function: Manual
Side spin adjustment range: 180 deg ± 90 deg
Double bounce: Support
Rated voltage: DC24V
Power switch: Power switch/network pairing key (WiFi, Bluetooth)
Installation location: Robot not fixed in the middle—can be placed anywhere on the table top
CE authentication: Yes
Product accessories: Adapter (AC100–240V, 50/60Hz) / Ping-pong balls
Product size: 465 × 340 × 176 mm
Net weight: 4 kg/8.8 lbs
Gross weight: 6 kg/13.2 lbs
Packaging size: 570 × 450 × 200 mm

APP
System: Android / iOS
Pairing method: Bluetooth
Holding racket: Left & Right hand selection
Upgrade (OTA): Yes
Custom Combination: No limit
Built-in combination: 264

N Control S
Remote control: Touch-tone
Pairing method: Bluetooth
Battery: Two No. 7 batteries
Quick practice: One group
Holding racket: Left & Right hand selection
Adapted or not: Standard configuration
Screen type: 1.5 inch
Language: Chinese
Firmware upgrade: Mobile APP upgrade firmware
Built-in combination: 264

Warranty:
Robot (Main Unit): Covered by a 1-year warranty
Core Parts (side rotational motor, left & right rotational motors, pitching screw motor, ball squeezing motor, ball feeding motor – without gearbox): 3-year warranty
Wearing Parts (ball squeezing wheel): 1-year warranty
Accessories (adaptor, ball recycle net, N-Control, E-PAD with lithium battery, Type-C charge line, net clip): 1-year warranty
